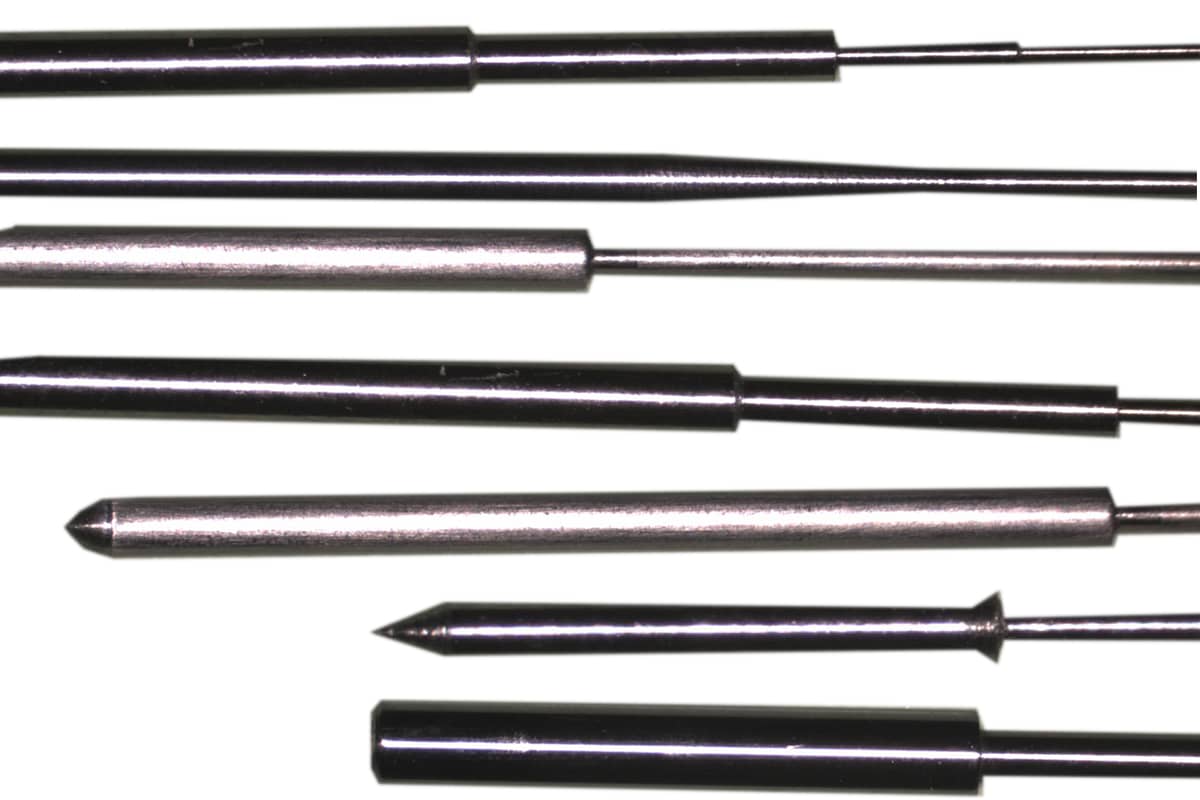

mandrelsOur Mandrel Manufacturing Services provide device manufacturers with low volume and short lead time fabrication of custom geometry mandrels. These high precision, tight tolerance mandrels can be made in a wide range of materials with optional coatings. We are a single source supplier for R&D mandrels and production mandrels to support all thermal processing equipment.


Features.

  • Profiles less than 0.005”
  • Tight tolerance ±0.0002”
  • Complex features – tapers, steps, oval D’s
  • Surface finish down to 4µ
  • Multi-piece assemblies
  • Certified with state-of-the-art optical inspection equipment
  • Common Materials: Nitinol, Stainless steel, Tool steel, Brass
  • Common Coatings: PFOA-free PTFE, Parylene

Applications

Taper Tip / Conical Tip
+
Taper/Conical
member bio

Taper/Conical

Tapered or conical tips are a standard configuration for many catheter applications, but don’t let their simple shape fool you.  Their precise external and internal geometric configurations are designed for specific functions, and they require a precise, repeatable process to be formed accurately. A wide variation in tube sizes, tip configurations and polymer choices add extra layers of complexity to the tip forming process.  Vante and PlasticWeld diverse equipment options provide you with unmatched versatility to meet your specific production challenges.

  • Tube OD Range: Tube sizes ranging from 2Fr up to 45Fr
  • Geometry Configurations: Including thin-walled tips, profiled ID transitions, thick walled and stepped OD’s.
  • Taper Lengths: Tip lengths ranging from 1mm up to 90mm
  • Materials: All thermoplastic polymers can be formed: including LDPE, HDPE, PE copolymers, PP, PU & PU blends, PEBAX, FEP, and many others.
  • Standard Machine Configurations: 1-up, 2-up and 4-up systems depending on project details.
  • Customized tooling enhancements to provide precise positioning of critical internal features

Contact us about your application
